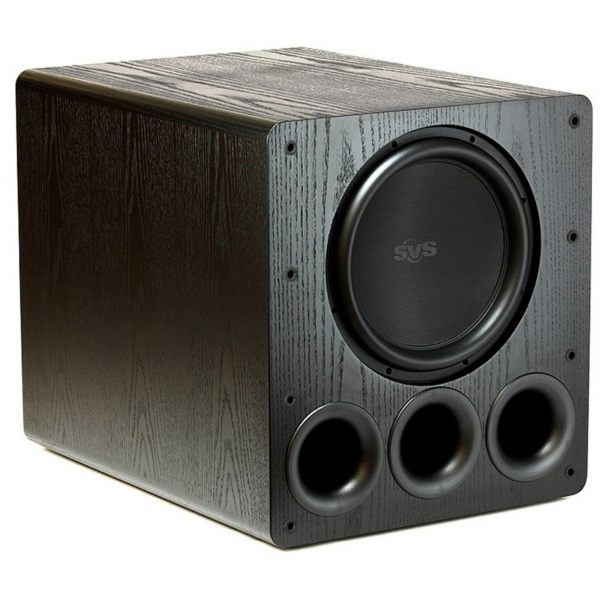

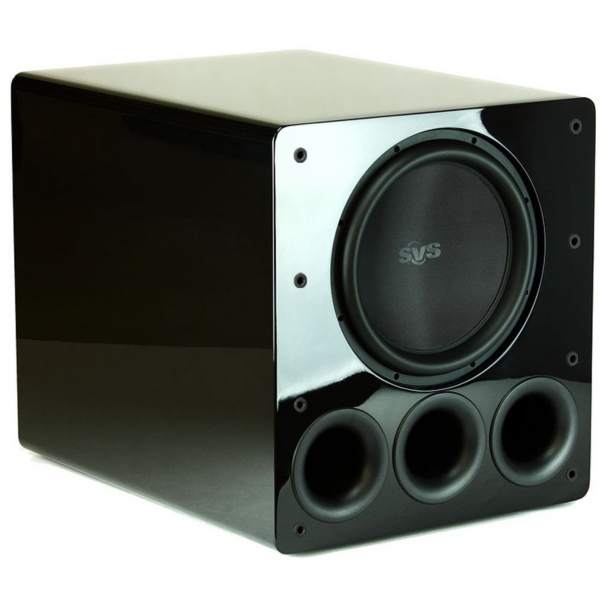

SVS PB13-Ultra

SVS’s original standard bearer for subwoofer performance, the PB13-Ultra is a legendary home theater subwoofer for its effortless power and subterranean low frequency extension down to 14Hz a with shocking musicality.

High Output SVS Ultra Series Driver Design

The flawlessly designed custom 13.5-inch driver is capable of handling the excursions and power needed to produce serious high output low bass. The woofer has an open but strong cast aluminum frame and a massive underhung magnet and motor assembly (tipping the scale at 55lbs) with a vented pole piece, large dual spiders and a large parabolic “high roll” surround making up the suspension. The surround is physically stitched to the cone, which is a significant design investment that reveals the performance-first approach to driver engineering.

Powerful and Sophisticated Sledge STA-1000D Amplifier

At the heart of the PB13-Ultra subwoofer is a muscular and sophisticated Sledge STA-1000D Class D amplifier. The amp's built-in Digital Signal Processor (DSP) dynamically controls output power to ensure you hear nothing but deep, low-distortion bass no matter how loud your music and movies get and there’s always headroom to spare.

The DSP platform has an interface utilizing an LCD screen and a single knob / push button to control the settings. The PB13-Ultra's on-board DSP tools for fine-tuning the sound include dual digital parametric EQs with adjustable frequency, cut/boost, and Q values, plus a room gain compensation control with adjustable frequencies and slope to help tame pesky room response issues. And, of course, you get fully adjustable phase compensation and digital crossover controls. To make adjustments easier, and to keep track of all your settings, there’s a two-line LCD readout on the sub's back panel.

Variable Port Tuning

The PB13-Ultra Subwoofer employs a large bass-reflex (ported) cabinet design that allows its Ultra 13.5-inch driver to make long excursions for exceptionally deep bass at high output levels. Three flared, low-noise ports on the front of the enclosure minimize back-wall interaction for greater bass accuracy. Also included are three dense foam plugs that allow you to custom-tune how deep and loud the sub will play by blocking the ports. The PB13-Ultra's strong, rigid enclosure helps eliminate cabinet flex and resonance to keep your bass ultra-clean. Connections include a stereo line-level RCA plus balanced XLR inputs and outputs for flexible connectivity with a wide range of audio gear, including high-end stereo preamps and A/V preamp/processors.
